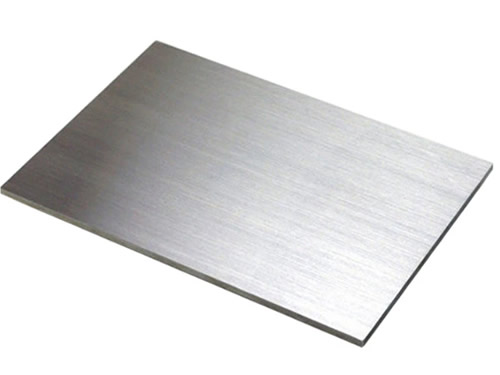

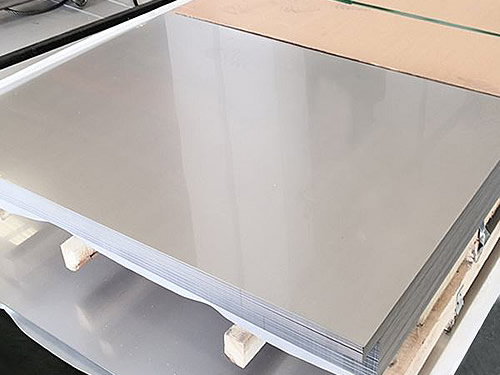

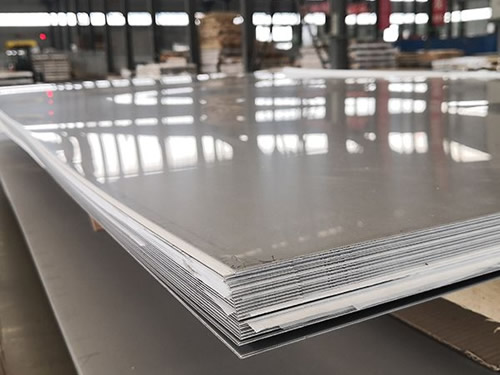

| Product Name | Stainless Steel Plate | |
| Commodity | Austenitic, Ferritic, Martensitic, Duplex, Cold rolled, Hot rolled | |
| Grade | 201, 202, 301, 304, 304L, 347, 321, 309S, 310S, 316L,2205, 409,410, 410S, 420, 420j1, 420j2, 430, 439, 443, 444,32760,32750,904L etc | |
| Austenitic stainless steel | 200 Series: 201, 202 | |
| 300 Series: 304, 304L, 309S, 310S, 316, 316L, 316Ti, 317L, 321, 347 | ||
| Ferritic stainless steel | 409L, 430, 436, 439, 441, 444, 446) | |
| Martensitic stainless steel | 410, 410S, 416, 420J1, 420J2, 431,440,17-4PH | |
| Duplex and Special Stainless: | S31803, S32205, S32750, 630, 904L | |
| Standard | ISO, JIS, ASTM, AS, EN, GB,DIN, JIS etc | |
| surface | N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, etc | |
| Delivery time | 3-15 days subject to the clients' requirement and quantity | |

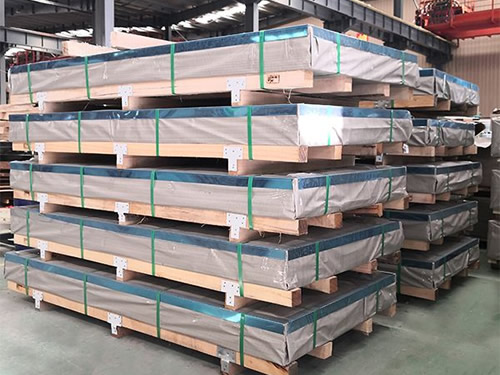

| Package | clients' requirement and Standard export sea-worthy packing | |
| MOQ | 1 ton | |
| Sample | Free Sample | |
Available Size Range
| Dimension | Range |
| Thickness | 0.1-200mm |
| Width | 10-2000mm |
| Length | 1000mm-11000mm or as customer' s requirement |
Common surfaces
Chemical Properties of Frequently-used :
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.455 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.441 | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | |
| S31803 | SAF2205 | 1.4462 | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 | |
| N08904 | 904L | 1.4539 | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 |
Stainless Steel Material Properties:
| Type No. | Tensile Strength, ksi | Yield Strength, ksi | Elongation in 2 inches, % | Reduction of Area, % | Brinell Hardness |
| 301 | 110 | 40 | 60 | 70 | 165 |
| 302 | 90 | 40 | 55 | 70 | 150 |
| 303 | 90 | 35 | 50 | 55 | 160 |
| 304 | 85 | 35 | 55 | 70 | 150 |
| 304L | 80 | 30 | 55 | 70 | 140 |
| 316 | 85 | 35 | 60 | 70 | 150 |
| 316L | 78 | 30 | 55 | 65 | 145 |
| 321 | 85 | 35 | 55 | 65 | 150 |
| 410 | 75 | 40 | 35 | 70 | 155 |
| 416 | 75 | 40 | 30 | 65 | 155 |
| 420 | 95 | 50 | 25 | - | 241 |
| 430F | 80 | 45 | 25 | 50 | 165 |
| 15-5 | 160 | 145 | 15 | - | 330 |
| 17-4 (Condition A) | 150 | 110 | 10 | 45 | 332 |
Application
Stainless steel plate is an extremely popular mills processed material that offers good corrosion resistance for numerous types of applications. Stainless steel plate is widely used in internal equipment, walls, pressure vessels and marine applications. 430 stainless steel plate is suitable for dry or internal environment equipment. 304 stainless steel plate is suitable for outdoor walls or windows. 316 stainless steel plate is suitable for the pressure vessel of industrial and marine applications.
